Pompeii. Porta del Vesuvio or Vesuvian Gate.

Excavated 1811 and 1905.



Pompeii Porta del Vesuvio. July 2003. Looking south-west across Porta Vesuvio.

Pompeii Porta del Vesuvio. July 2003. Looking south-west across Porta Vesuvio.



Pompeii Vesuvian Gate. 1906 photo, looking north through gate. The gate is at the northern end of the road that runs through the city to the Porta Stabia. See Notizie degli Scavi di Antichità, 1906, p. 97, fig. 1.

Vesuvian Gate Pompeii. 1906 photo, looking north through gate.

The gate is at the northern end of the road that runs through the city to the Porta Stabia.

See Notizie degli Scavi di Antichità, 1906, p. 97, fig. 1.



Pompeii Porta del Vesuvio and Castellum Acquae. 1903 photo of water tower and gate after excavation. The walls of the gate are older than the Castellum Acquae which had been cut into them. See Notizie degli Scavi di Antichità, 1903, p. 28, fig. 3. See Notizie degli Scavi di Antichità, 1906, p. 97-100.

Pompeii Porta del Vesuvio and Castellum Aquae. 1903 photo of water tower and gate after excavation.

The walls of the gate are older than the Castellum Aquae which had been cut into them.

See Notizie degli Scavi di Antichità, 1903, p. 28, fig. 3.

See Notizie degli Scavi di Antichità, 1906, p. 97-100.





Pompeii Vesuvian Gate. 1906 plan. According to Sogliano, the gate, like the Porta Stabia consists of three parts.

Vesuvian Gate Pompeii. 1906 plan.

According to Sogliano, the gate, like the Porta Stabia consists of three parts.

The passage A is 4.65m wide and 10.20m long.

It consists of two rows of Nocera tufa stone of varying sizes, laid in horizontal rows.

Foundations are of Sarno limestone as can be seen in the west wall.

The east wall only goes a short distance but its thickness of 1.40m can be clearly seen.

On the outside of the west wall the curtain was demolished to make way for the Castellum Aquae which leaned against it.

Along the Western Wall runs a narrow sidewalk which finishes in an angle corner, like the Porta Stabia.

At the south end of the gate are three cippi of lava, as shown on the plan, apparently acting as kerbstones.



A second narrower passage B followed, measuring 3.65m wide by 5.15m long, with the eastern side missing entirely.

The Western Wall, well preserved, is composed of blocks of Sarno limestone, laid in horizontal rows.

South edge has a long vertical section recess almost at right angles.

At each of the two northern ends of this narrow passage are two lava blocks [b on the plan], with inserts for the hinges and posts, for the doors which opened inward.

These doors, turning on the hinges, closed against a small block of lava [c on the plan], remaining somewhat raised above the ground, allowed the free drainage of water, which ran down from the heights of Mount Vesuvius.

In the top of the Western Wall there is a square hole and there was undoubtedly another in the opposite wall. These contained the security bar that kept the doors closed.



After this second passage, the gate forms a tapering vestibule C, 5.10m wide and 6.10m long, with a sidewalk on the right, going out. The eastern wall is quite destroyed; the other is made with blocks of Nocera Tufa and has a coating made of opus incertum and rusticated blocks of limestone in the corners. This coating, on average 0.58m thick, is a later addition, and it shows that this gate, like all the others in Pompeii, underwent changes over time.

In the south-west corner there was an masonry altar [d on the plan] with edges in relief and dressed entirely in plaster and with a painted representation now completely unrecognizable.

Next to this altar there was another [e on the plan], much smaller, also with an edge in relief.

They were certainly devoted to worship of Lari Pubblici and to the guardian deity of the gate, whose representations would have been painted on the walls, in which the two altars are huddled.



At either end of the vestibule [C] are two strong pillars in blocks of limestone and masonry.

The West pillar, somewhat smaller than the other, is 0.90 m from the wall, while the another now missing was undoubtedly to the East wall.

Between the Western pillar and the wall there was a narrow side passage, as at Porta Marina and Herculaneum Gate.

An arch connected the Western pillar with the wall; a second, much larger, joined this same pillar with the Eastern one, and both making a large vault covering the Vestibulum C.

The narrow passage B, with the gate doors, was similarly covered.

Whether passage A was covered or uncovered is not known.



See Notizie degli Scavi di Antichità, 1906, p. 97-100.



Pompeii Vesuvian Gate. 1906 drawing of masons marks. According to Sogliano, on blocks of Tufa were these stonemason’s marks. See Notizie degli Scavi di Antichità, 1906, p. 99.

Vesuvian Gate Pompeii. 1906 drawing of masons marks.

According to Sogliano, on blocks of Tufa were these stonemason’s marks.

See Notizie degli Scavi di Antichità, 1906, p. 99.



Pompeii Vesuvian Gate. September 2011. Looking west to gate. Photo courtesy of Michael Binns.

Vesuvian Gate Pompeii. September 2011. Looking west to gate. Photo courtesy of Michael Binns.

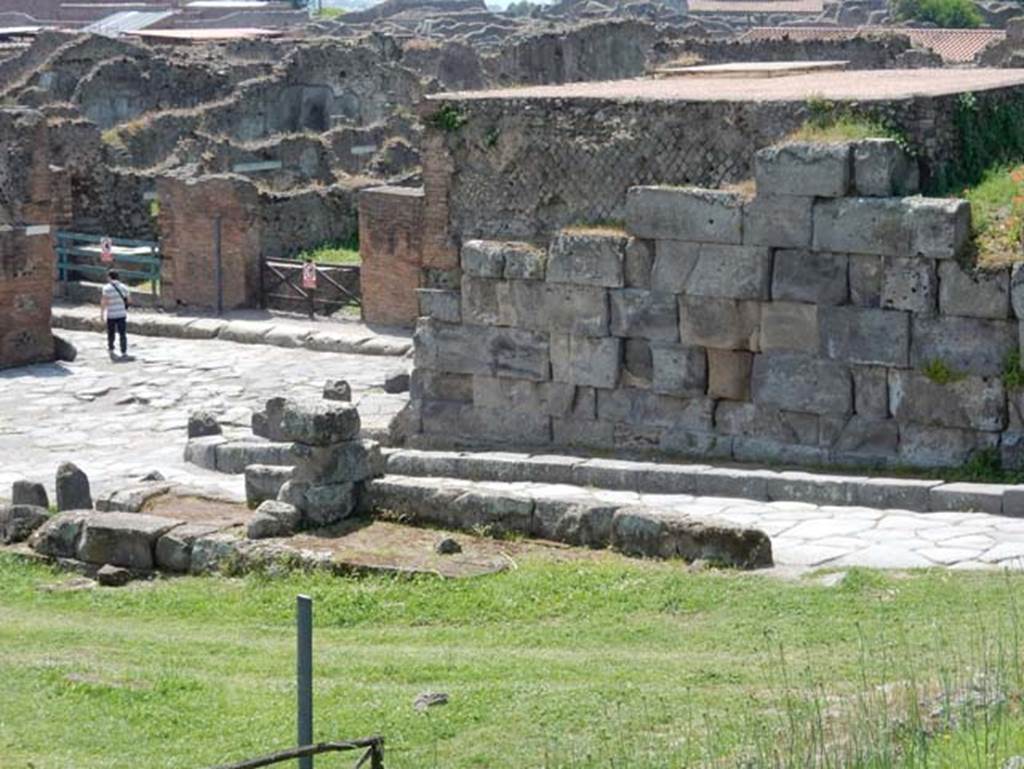

Vesuvian Gate Pompeii. May 2015. Looking south-west. Photo courtesy of Buzz Ferebee.

Vesuvian Gate Pompeii. May 2015. Looking south-west. Photo courtesy of Buzz Ferebee.



Vesuvian Gate Pompeii. May 2015. South end of west side of Vesuvian Gate, Looking west.  Photo courtesy of Buzz Ferebee.

Vesuvian Gate Pompeii. May 2015. South end of west side of Vesuvian Gate, Looking west.

Photo courtesy of Buzz Ferebee.



Vesuvian Gate Pompeii. May 2015. Detail of south end of west side of Vesuvian Gate, Looking west.  Photo courtesy of Buzz Ferebee.

Vesuvian Gate Pompeii. May 2015. Detail of south end of west side of Vesuvian Gate, Looking west.

Photo courtesy of Buzz Ferebee.



Vesuvian Gate Pompeii. May 2015. Looking west. Photo courtesy of Buzz Ferebee.

Vesuvian Gate Pompeii. May 2015. Looking west. Photo courtesy of Buzz Ferebee.



Vesuvian Gate Pompeii. May 2015. Looking south-west. Photo courtesy of Buzz Ferebee.

Vesuvian Gate Pompeii. May 2015. Looking south-west. Photo courtesy of Buzz Ferebee.



Vesuvian Gate Pompeii. May 2015. North end of Vesuvian Gate, Looking west. Photo courtesy of Buzz Ferebee.

Vesuvian Gate Pompeii. May 2015. North end of Vesuvian Gate, Looking west.

Photo courtesy of Buzz Ferebee.



Vesuvian Gate Pompeii. May 2015. North end of Vesuvian Gate, Looking south-west.
Photo courtesy of Buzz Ferebee.

Vesuvian Gate Pompeii. May 2015. North end of Vesuvian Gate, Looking south-west.

Photo courtesy of Buzz Ferebee.



Pompeii Vesuvian Gate. December 2005. Looking north across the south part [A on plan].
On the left is the sidewalk or pavement.

Vesuvian Gate Pompeii. December 2005. Looking north across the south part [A on plan].

On the left is the sidewalk or pavement.



Pompeii Vesuvian Gate. May 2006. Looking north-west across area A.

Vesuvian Gate Pompeii. May 2006. Looking north-west across area A.



Vesuvian Gate, Pompeii. 1964.  Looking north.  Photo by Stanley A. Jashemski.
Source: The Wilhelmina and Stanley A. Jashemski archive in the University of Maryland Library, Special Collections (See collection page) and made available under the Creative Commons Attribution-Non Commercial License v.4. See Licence and use details.
J64f1617

Vesuvian Gate, Pompeii. 1964.  Looking north.  Photo by Stanley A. Jashemski.

Source: The Wilhelmina and Stanley A. Jashemski archive in the University of Maryland Library, Special Collections (See collection page) and made available under the Creative Commons Attribution-Non-Commercial License v.4. See Licence and use details.

J64f1617



Castellum Acqua, on left,  and Vesuvian Gate site, Pompeii. 1961. Looking north-west.   Photo by Stanley A. Jashemski.
Source: The Wilhelmina and Stanley A. Jashemski archive in the University of Maryland Library, Special Collections (See collection page) and made available under the Creative Commons Attribution-Non Commercial License v.4. See Licence and use details.
J61f0389

Castellum Acquae, on left, and Vesuvian Gate site, Pompeii. 1961. Looking north-west.

Photo by Stanley A. Jashemski.

Source: The Wilhelmina and Stanley A. Jashemski archive in the University of Maryland Library, Special Collections (See collection page) and made available under the Creative Commons Attribution-Non-Commercial License v.4. See Licence and use details.

J61f0389

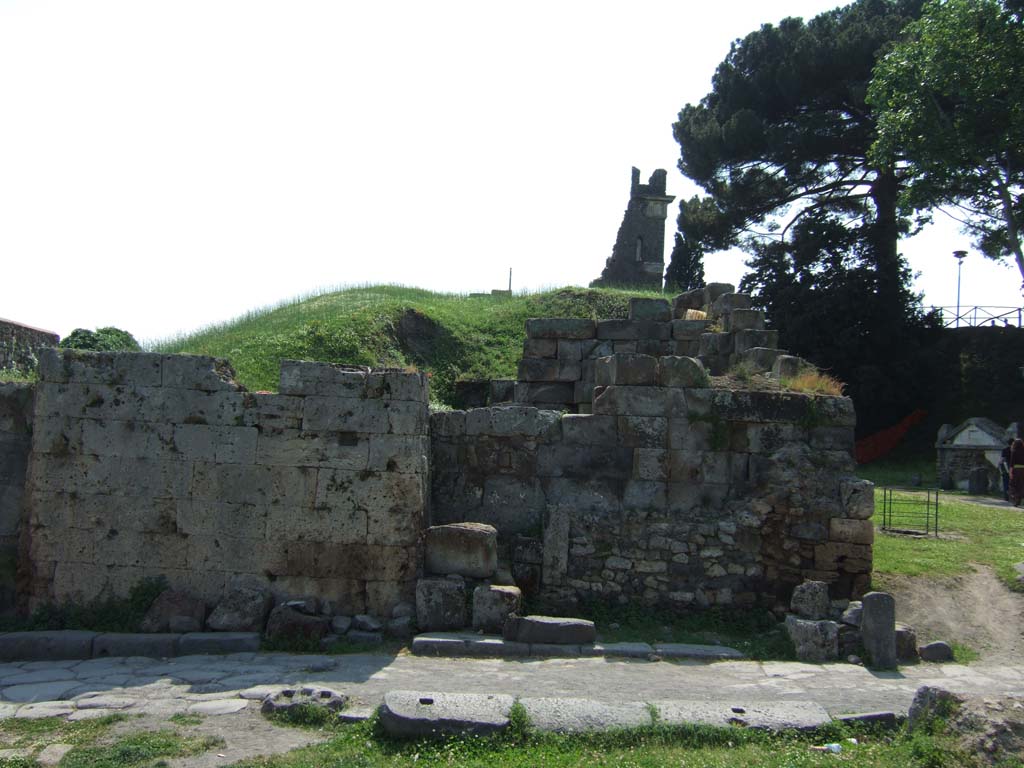

Pompeii Porta del Vesuvio and Castellum Acquae. May 2006. Looking north from Via del Vesuvio.

Pompeii Porta del Vesuvio and Castellum Aquae. May 2006. Looking north from Via del Vesuvio.



Pompeii Porta del Vesuvio and Castellum Aquae. October 2001. Looking north from Via del Vesuvio. Photo courtesy of Peter Woods.

Pompeii Porta del Vesuvio and Castellum Aquae. October 2001. Looking north from Via del Vesuvio.

Photo courtesy of Peter Woods.



Pompeii Porta del Vesuvio. June 2012. Looking north through gate.

Pompeii Porta del Vesuvio. June 2012. Looking north through gate.



Vesuvian Gate, Pompeii. 1964.  Looking north. Photo by Stanley A. Jashemski.
Source: The Wilhelmina and Stanley A. Jashemski archive in the University of Maryland Library, Special Collections (See collection page) and made available under the Creative Commons Attribution-Non Commercial License v.4. See Licence and use details.
J64f1618

Vesuvian Gate, Pompeii. 1964. Looking north. Photo by Stanley A. Jashemski.

Source: The Wilhelmina and Stanley A. Jashemski archive in the University of Maryland Library, Special Collections (See collection page) and made available under the Creative Commons Attribution-Non-Commercial License v.4. See Licence and use details.

J64f1618



Pompeii. Vesuvian Gate. May 2006. North end of gate, looking south-east across area C.

Vesuvian Gate Pompeii. May 2006. North end of gate, looking south-east across area C.



Pompeii. Vesuvian Gate. December 2005. Looking south across area C and through gate.

Vesuvian Gate Pompeii. December 2005. Looking south across area C and through gate.



Pompeii Vesuvian Gate. May 2006. Detail of east side of area C.

Vesuvian Gate Pompeii. May 2006. Detail of east side of area C.

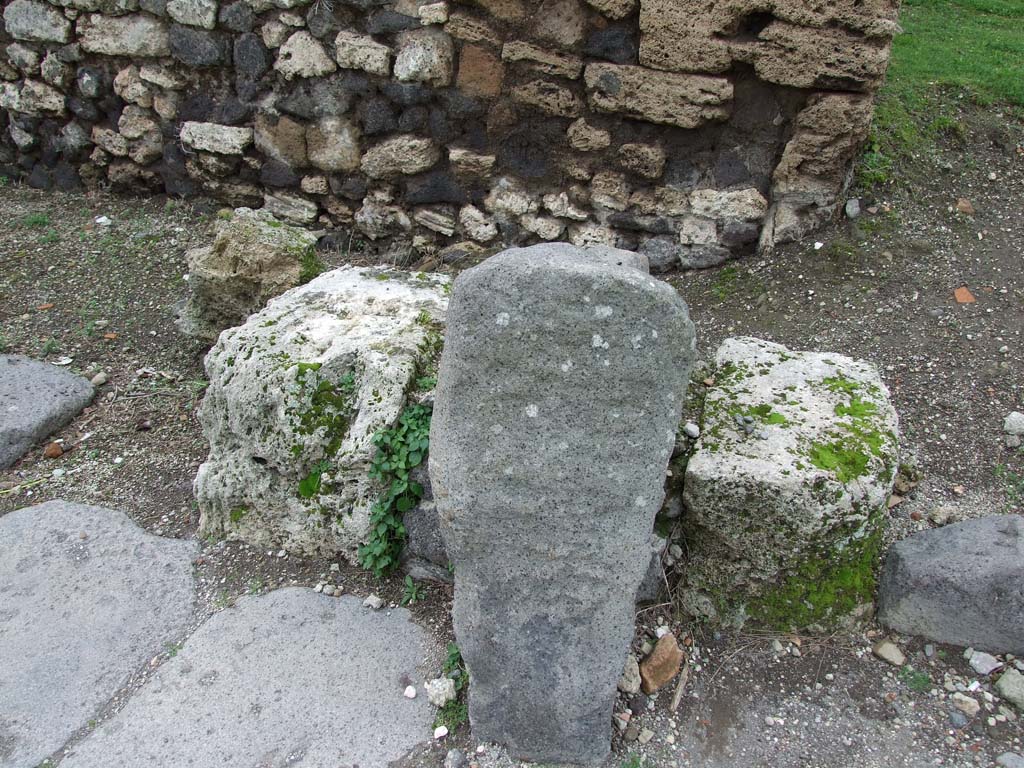

Pompeii Vesuvian Gate. May 2006. West side. Cippus used as kerbstone in north-west corner of area C.

Vesuvian Gate Pompeii. May 2006. West side. Cippus used as kerbstone in north-west corner of area C.



Pompeii Vesuvian Gate. May 2006. Looking west across areas B and C.

Vesuvian Gate Pompeii. May 2006. Looking west across areas B and C.



Pompeii Vesuvian Gate. May 2006. East side of area C, looking north.

Vesuvian Gate Pompeii. May 2006. East side of area C, looking north.



Pompeii Vesuvian Gate. May 2006. Looking south-west across areas A and B. The Castellum Acquae or water tower is on the left behind the side of the gate.

Vesuvian Gate Pompeii. May 2006. Looking south-west across areas A and B.

The Castellum Aquae or water tower is on the left behind the side of the gate.



Vesuvian Gate Pompeii. May 2006. Area C at north-west corner of gate.

Vesuvian Gate Pompeii. June 2012. Area C at north-west corner of gate.



Vesuvian Gate Pompeii. May 2006. Behind area C at north-west corner of gate is a hollow rectangular walled area.

Vesuvian Gate Pompeii. May 2006. Behind area C at north-west corner of gate is a hollow rectangular walled area.



Vesuvian Gate Pompeii. May 2006. Looking north-west inside walled area at north-west corner of gate.

Vesuvian Gate Pompeii. May 2006. Looking north-west inside walled area at north-west corner of gate.



Vesuvian Gate Pompeii. May 2006. Looking west along inside of south wall of walled area at north-west corner of gate.

Vesuvian Gate Pompeii. May 2006. Looking west along inside of south wall of walled area at north-west corner of gate.



Vesuvian Gate Pompeii. May 2006. Looking west along inside of south wall of walled area at north-west corner of gate.

Vesuvian Gate Pompeii. May 2006. Looking west along inside of south wall of walled area at north-west corner of gate.



Vesuvian Gate Pompeii. May 2006. South wall of walled area at north-west corner of gate.

Vesuvian Gate Pompeii. May 2006. South wall of walled area at north-west corner of gate.



Vesuvian Gate Pompeii. May 2006. North inside wall of walled area at north-west corner of gate.

Vesuvian Gate Pompeii. May 2006. North inside wall of walled area at north-west corner of gate.



Vesuvian Gate Pompeii. May 2006. West inside wall of walled area at north-west corner of gate.

Vesuvian Gate Pompeii. May 2006. West inside wall of walled area at north-west corner of gate.



Vesuvian Gate Pompeii. May 2006. Walls and drain leading to water tower, on north side of gate.

Vesuvian Gate Pompeii. May 2006. Walls and drain leading to water tower, on north side of gate.



Vesuvian Gate Pompeii. May 2006. Channel leading to water tower on north side of gate.

Vesuvian Gate Pompeii. May 2006. Channel leading to water tower on north side of gate.



Vesuvian Gate Pompeii. May 2015. South-east corner of gate and wall on east side., looking east. Photo courtesy of Buzz Ferebee.

Vesuvian Gate Pompeii. May 2015. South-east corner of gate and wall on east side., looking east.

Photo courtesy of Buzz Ferebee.



Vesuvian Gate Pompeii. December 2005. South-east corner of gate, looking east.

Vesuvian Gate Pompeii. December 2005. South-east corner of gate and wall, looking east.



Vesuvian Gate Pompeii. December 2005. Looking west from gate along walls to Tower X,

Vesuvian Gate Pompeii. December 2005. Looking west from gate along walls to Tower X,



Vesuvian Gate Pompeii. May 2006. Wall to left of Tower X showing impact by war machines used by Sulla.

Vesuvian Gate Pompeii. May 2006. Wall to left of Tower X showing impact by war machines used by Sulla.



Vesuvian Gate Pompeii. May 2006. Wall to left of Tower X showing impact by war machines used by Sulla.

Vesuvian Gate Pompeii. May 2006. Wall to left of Tower X showing impact by war machines used by Sulla.



Vesuvian Gate Pompeii. May 2006. Wall to left of Tower X showing impact by war machines used by Sulla.

Vesuvian Gate Pompeii. May 2006. Wall to left of Tower X showing impact by war machines used by Sulla.



Vesuvian Gate Pompeii. May 2006. Wall to left of Tower X showing impact by war machines used by Sulla.

Vesuvian Gate Pompeii. May 2006. Wall to left of Tower X showing impact by war machines used by Sulla.



Vesuvian Gate Pompeii. May 2006. Wall to left of Tower X showing impact by war machines used by Sulla.

Vesuvian Gate Pompeii. May 2006. Wall to left of Tower X showing impact by war machines used by Sulla.



Vesuvian Gate Pompeii. May 2006. Wall to left of Tower X showing impact by war machines used by Sulla.

Vesuvian Gate Pompeii. May 2006. Wall to left of Tower X showing impact by war machines used by Sulla.



Vesuvian Gate Pompeii. May 2006. Wall to left of Tower X showing impact by war machines used by Sulla.

Vesuvian Gate Pompeii. May 2006. Wall to left of Tower X showing impact by war machines used by Sulla.



Vesuvian Gate Pompeii. May 2006. Wall at Vesuvian gate showing impact of siege balls used by Sulla.

Vesuvian Gate Pompeii. May 2006. Wall at Vesuvian gate showing impact of siege balls used by Sulla.



Vesuvian Gate Pompeii. December 2005. Looking east along city walls to north end of Gate.

Vesuvian Gate Pompeii. December 2005. Looking east along city walls to north end of Gate.



Vesuvian Gate Pompeii. May 2006. VG5 Cippus of Titus Suedius Clemens.The Cippus is inscribed:

Ex auctoritate
imp(eratoris) Caesaris
Vespasiani Aug(usti)
loca publica
a privatis possessa T(itus) Suedius
Clemens tribunus causis cognitis
et mensuris factis rei publicae
Pompeianorum restituit.

By virtue of authority conferred upon him by the Emperor Vespasian Caesar Augustus,
Titus Suedius Clemens, tribune, having investigated the facts and taken measurements,
restored to the citizens of Pompeii public places illegally appropriated by private persons.

Similar Cippi were found at the Porta Ercolano, Porta Marina and the Porta Nocera.
The wording “rei publicae Pompeianorum” on one of these, discovered in 1763, was the first positive identification that the site was Pompeii.
Until then scholars had divided opinions on the city buried under Civita. Many, including the first official excavators, thought it was the ancient city of Stabiae.
See Conticello, B., Ed, 1990. Rediscovering Pompeii. Rome: L’Erma di Bretschneider. (p. 225).

Vesuvian Gate Pompeii. May 2006. VG5 Cippus of Titus Suedius Clemens. The Cippus is inscribed:



Ex auctoritate

imp(eratoris) Caesaris

Vespasiani Aug(usti)

loca publica

a privatis possessa T(itus) Suedius

Clemens tribunus causis cognitis

et mensuris factis rei publicae

Pompeianorum restituit.



By virtue of authority conferred upon him by the Emperor Vespasian Caesar Augustus,

Titus Suedius Clemens, tribune, having investigated the facts and taken measurements,

restored to the citizens of Pompeii public places illegally appropriated by private persons.



Similar Cippi were found at the Porta Ercolano, Porta Marina and the Porta Nocera.

The wording “rei publicae Pompeianorum” on one of these, discovered in 1763, was the first positive identification that the site was Pompeii.

Until then scholars had divided opinions on the city buried under Cività. Many, including the first official excavators, thought it was the ancient city of Stabiae.

See Conticello, B., Ed, 1990. Rediscovering Pompeii. Rome: L’Erma di Bretschneider. (p. 225).













The low resolution pictures on this site are copyright © of Jackie and Bob Dunn and MAY NOT IN ANY CIRCUMSTANCES BE USED FOR GAIN OR REWARD COMMERCIALLY. On concession of the Ministero dei Beni e delle Attività Culturali e del Turismo - Parco Archeologico di Pompei. It is declared that no reproduction or duplication can be considered legitimate without the written authorization of the Parco Archeologico di Pompei.

Le immagini fotografiche a bassa risoluzione pubblicate su questo web site sono copyright © di Jackie e Bob Dunn E NON POSSONO ESSERE UTILIZZATE, IN ALCUNA CIRCOSTANZA, PER GUADAGNO O RICOMPENSA COMMERCIALMENTE. Su concessione del Ministero dei Beni e delle Attività Culturali e del Turismo - Parco Archeologico di Pompei. Si comunica che nessun riproduzione o duplicazione può considerarsi legittimo senza l'autorizzazione scritta del Parco Archeologico di Pompei.

Ultimo aggiornamento - Last updated: 11-Nov-2018 22:25
